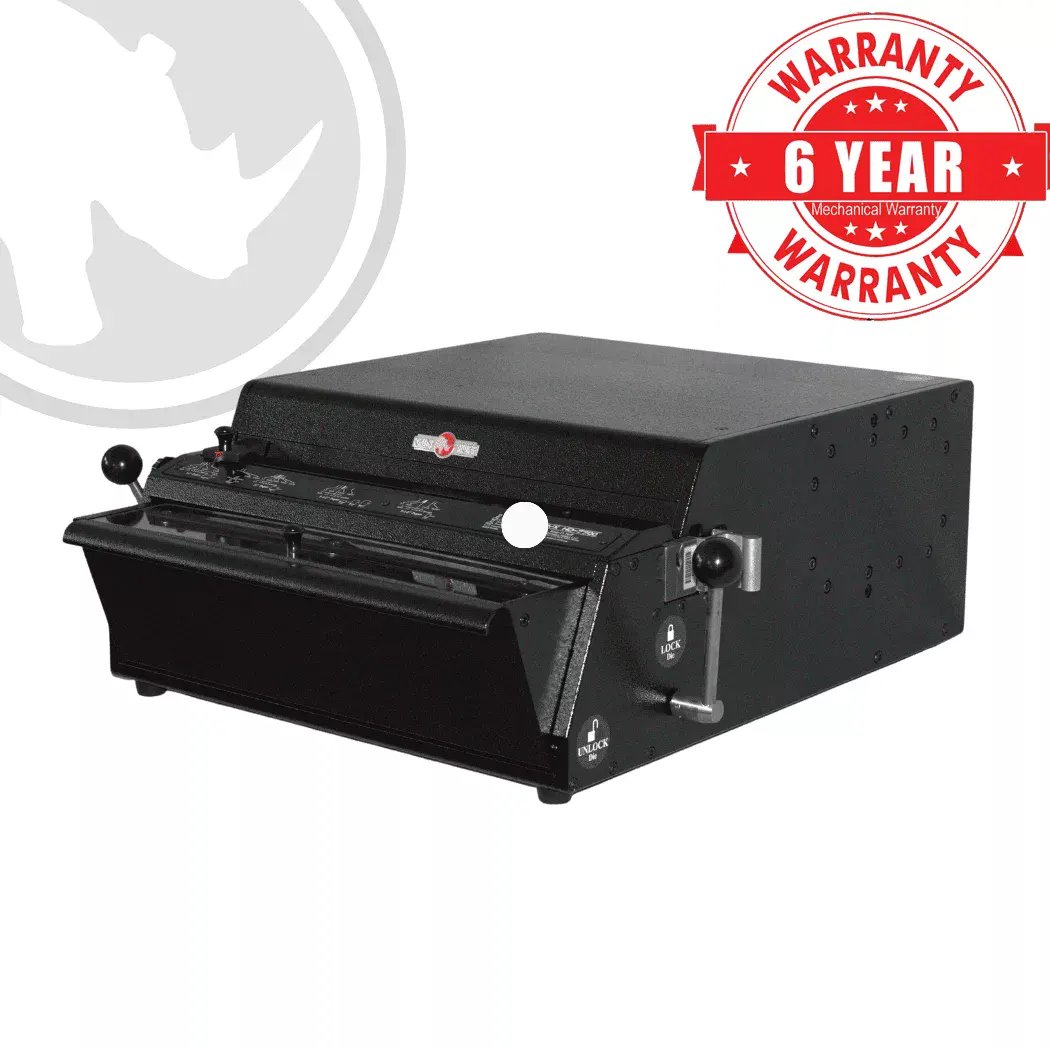

Onyx HD7725 Ultima Super Heavy-Duty Punch
The HD7725 Ultima is THE ONLY heavy duty desktop Punch, capable of out performing, out punching, and out lasting, all the competition. Put simply, it is the first and only choice when deciding upon a heavy duty desktop solution.
The HD7725 boasts unrivalled performance, along with an industry unique 6 year parts warranty. Designed for high volume commercial and corporate use. The HD7725 Ultima will handle any size project, large or small. The machine of choice when you are looking for outstanding, unrivalled performance, but don’t take our word for it, call or mail and we can arrange a demonstration of this amazing machine in action.
Product Downloads
Anti Jam Features
The Onyx HD7700 Ultima is supplied as standard with two anti-jam features. The first is an electric anti jam, so that in the unlikely event the machine jams, simply turn it off for a moment, the back on and the motor will go into reverse and free the jam. Should the jam be such that the Die pins cannot be released then the manual reverse feature can be utilised and the Die pins released by simply inserting and turning the release lever in the direction indicated.Side-Lay Micro Adjuster
Using the lift & Shift (Quick Adjust) side gauge, in conjunction with clearly marked paper size markings on top of the machine move the side lay into position. Then use the micro adjust dial to gain absolutely accurate sheet position.Quick Change Punch Tool
Changing the punch (die) tool on the HD7700 is quick and very simple. Just pull the release levers each side of the machine forward, hold the end of the tool and pull the tool straight out of the machine. Insertion is just the reverse of this process. Once you have the two lock arms back up, the green indicator will light and full operation can be resumed.More Information
- Patented Auto Reverse Feature – Our new Overload Detection feature, triggers an auto reversing function to reduce jamming in the punch.
- Rated up to 55 sheets or 110 pages of 20 pound (80 gsm) paper – The number of sheets depends on the paper weight and punch pattern used.
- 25 cycles per minute.
- Patented “QCDS”, Quick Change Die System – All punch pins easily disengage.
- “Accu-Set”paper adjustment knob – for fine adjustments on odd paper sizes.
- Smooth, Quiet, Power on Demand Operation.
- Standard Versa Switch and Foot Pedal operation. Palm Switch optional
- The HD7725 has more than 20 interchangeable dies available with 12 standard hole patterns. (Each die is priced separately).
- Combs
- Wire Loop
- Plastic Coils
- Velo Bind™ GBC
- 3 Hole Loose Leaf
- Extremely durable – all metal construction.
- Extra high capacity Waste Chip Tray with Clear View Access – No sensors needed.
Specifications
- Electrical Requirements:
– Volts AC 115, AMPS 4, HZ 60
– Volts AC 230, AMPS 2, HZ 50
- Weight: 43.54Kgs (Shipping Weight: 46.72Kgs)
- Dimensions (WxDxH): 534mm x 547mm x 216mm
After Sales Service
We have our own servicing team with over 30 years’ experience in the industry who are available to back up all the products we sell, we pride ourselves on our after sales service team. All new equipment comes with the manufacturer’s warranty thereafter we have a number of options available to ensure your machinery is running in the most effective way possible.
