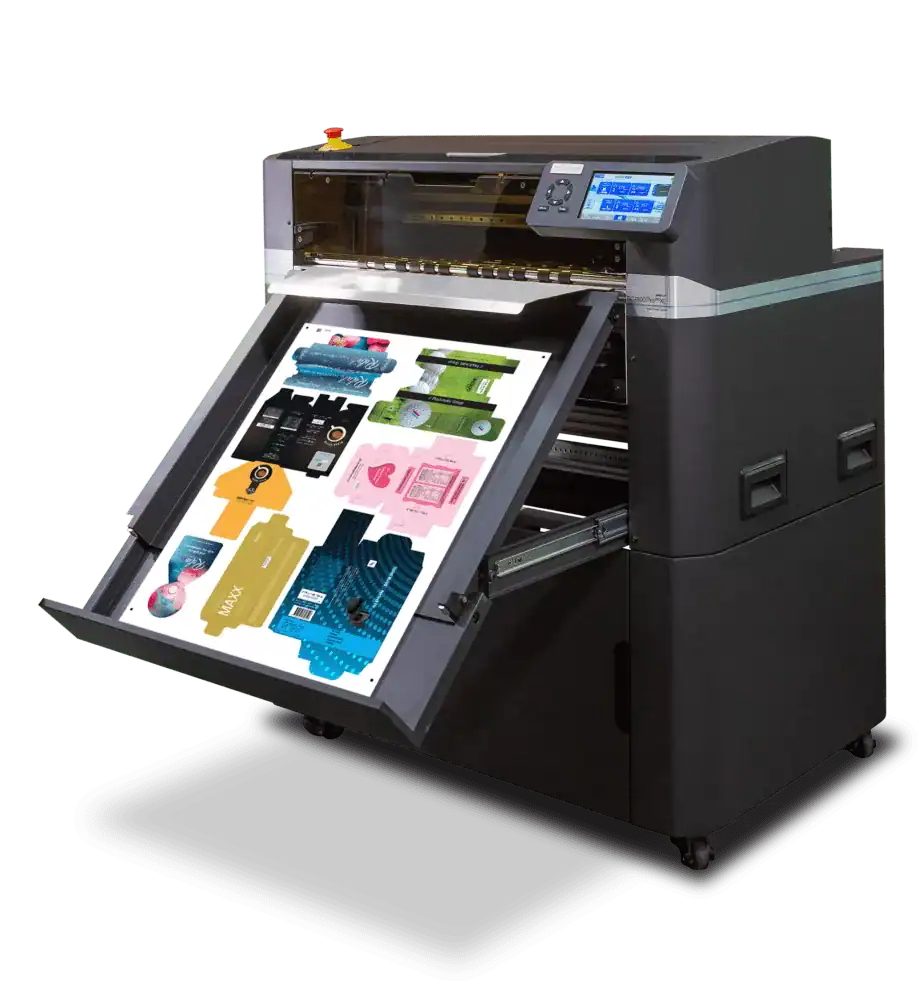

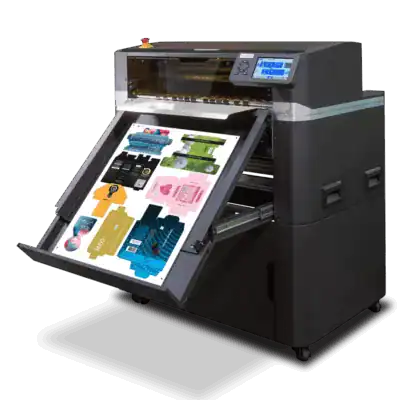

SC7800 Pro-RS XL B2+ Automatic Sheet Cutter
SC7800 Pro-RS XL B2+ Automatic Sheet Cutter
Auto-feed digital cutter with revolutionary dual opposing tangential creasing technology.
ColorCut SC7800 Pro-RSÂ XL automatic, unattended sheet cutting & creasing, for card, packaging and P.O.S.
The NEW ColorCut SC7800 Pro-RS XL sets a new standard for the world’s best digital crease and on a B2 sized digital die-cutter!
Fully automatic, ultra-fast, energy efficient production in a compact and portable footprint.
Targeted for users seeking an affordable, compact, high-capacity cutting solution, the SC7100 Pro-RSÂ XL combines ultra-reliable feeding with an instant job retrieval system and flawless high-speed cutting and tangential wheel and groove creasing for complete unattended production.
Cut, crease & perforate
Perform any shape cutting and creasing on up to 450 micron paper/card. Blending flatbed precision with sheet-fed speed, the ColorCut SC7800 Pro-RS XL delivers effortless digital die-cutting and creasing for cartons, packaging, P.O.S. cards, and paper projects. Its opposing male and female tangential creasing tools create the most precise, cleanest creases of any digital sheet cutter in the world, ensuring professional-quality folds every time. Designed for on-demand production, it eliminates dies and setup costs, making it ideal for busy print departments. With ultra-reliable auto-feeding, instant job retrieval, and fast, flawless cutting, the SC7800 Pro-RS XL provides high-capacity, fully unattended sheet finishing with maximum efficiency and unmatched crease quality.Unique in its class – World’s first male / female creasing digital die-cutter
Create flawless creases of any shape with the World’s first machine that features a male and female crease tool. Triple tool head – includes Passive Drag cut and Active male and female tangential creasing tools for an enhanced and superior crease. The result is a cleaner, deeper, and more professional crease—simply unmatched in its class. The wheel creasing tools are used to produce excellent creasing on printed sheets. This can be set to perform its tasks before the cutting process and will also exactly match the designer’s vector artwork.Industry-leading software!
Intec’s ColorCut Pro Production Studio 5 ColorCut Pro Production Studio 5 software is supplied, as standard, enabling you to use Adobe® Illustrator® or CorelDRAW® for your cut file creation. Add the optional ColorCut Pro Server Station to maximise your workflow and productivity. The Server Station comes pre-installed with additional ColorCut software; Template Maker which offers users bespoke cut file generation of carton box designs and Job Library Manager for file cutting control.More Information
SC7800 Pro-RSÂ XL – B2+ wide format version available
ColorCut SC7800 Pro-RS XL sets a new benchmark in automated die-cutting and creasing with its unique triple tool cutting and creasing head for large format press proofing, folder production, packaging and much more!
Triple-tool Digital Die-Cutter, features a tangential wheel creaser (male) and a tangential wheel groove (female) tool – the ultimate digital die cutter ever to be designed! The third tool provides exceptional cutting via a contour drag knife for card, paper and synthetic media.
Highly efficient, ultra-low energy consumption compact sheet cutter/creasers with auto-feeder for rapid sheet production.
Features two modes of operation: DIRECT and HELD
DIRECT mode: Use ColorCut Pro to create your cut files & cut directly from a PC.
HELD mode: Standalone operation. Load repeat jobs to a USB drive, enabling you to remotely cut your jobs anywhere there is power – even using a battery! (NO WIRES).
One cutter – exceptional media size handling
B2+ wide-format Pro-RSÂ XL offers cutting from A3 sheets to larger than B2!
No other device in its class offers so much – and also at such an affordable price!
Features:
- Smooth, deep creasing with its dual opposing tangential creasing wheel (male) and female tangential creasing groove wheel
- Digitally cut-through any shape sheet card item – with SmartTag retention – on up to 450 micron media
- Run jobs from USB drive or PC
- Cut speeds up to 1060mm/sec
- Crease force delivered using a dual opposing tangential creasing wheel & groove wheel for up to 2.5kgf (2,500gf)
- Cut force up to 1kgf
- Digital process means no more costly dies or wasted waiting time
- Auto feeder stacks up to 1,000 80gsm sheets. Up to 520mm (20.5″) x 740mm (29″) and custom sizes – with self-centring function and Airblade2© separation
- ColorCut Pro – Production Studio software included
- QR code/Job Library retrieves associated cut files – even for mixed job batch sessions or rotated sheets
- SmartMark registration delivers incredible accuracy – enabled via the supplied ColorCut Pro software
- Optional Server Station expands workflow capability and offers additional software for instant box/carton templates
Specifications
Media handling:
SC7800 Pro-RSÂ XL
A3 , Tabloid, SRA3 & Tabloid Extra, 13″ x 19″ and custom sizes up to B2+ sheet size
Custom media sizes:Â Media width (min-max): 279mm x 520mm
Media length (min-max): 400mm x 740mm
Job recognition:
Advanced QR code technology for instant file recognition and registration
Stand:Â included
Media storage:Â lower media trays in included stand
Media thickness:  200 micron (0.20mm ) – 450 micron (0.45mm)
Auto-sheet capacity:Â Up to 1,000 sheets (based on 80gsm)Â 15kg | XL 30kg
CUTTING CONTROL
Mountable tools: Triple tool functionality – 3 tools supplied as standard:
Blade holder – holds cutting blades; 30º, 45º or 60º for range of media types
Creasing tool – Tangential wheel creaser (male) and Tangential Creasing Groove (female), suitable for ≤450 micron card and other optional widths available
Calibration pen – pen, plotting pen used for auto-calibration.
Crease force/pressure:Â up to 2,500gf delivered in 190 steps programmable through Intec ColorCut Pro cutting software
Cut force/pressure:Â up to 1,000gf delivered in 190 steps programmable through Intec ColorCut Pro cutting software
Maximum speed:Â up to 1060mm/second
REGISTRATION CONTROL & JOB MANAGEMENT:
Registration system: Vision3 – High resolution CCD vision system reads the registration marks on the media and compares their position to the original digital file, automatically adjusting the cut lines to correct for any scale or skew variations
Cut position accuracy:Â +/- 125 micron
Auto job recognition:Â Instant cut file retrieval, supported through QR code job recognition in conjunction with ColorCut Pro 5 software (supplied)
POWER REQUIREMENTS
Power supply:Â 100-240V 50/60Hz, 140W Avg. (320W peak)
Approvals:Â Complies with CE and RoHs directive
GENERAL
Weight:Â 210kg
Dimensions: W1050 × D860 × H1256mm
Max’ area required in use: W1013 × D1740 × H1256mm (working depth includes front media catch tray and rear extendable media tray)
Varied or mixed job recognition: QR reading provides capability to stack mixed jobs and cut at same time
