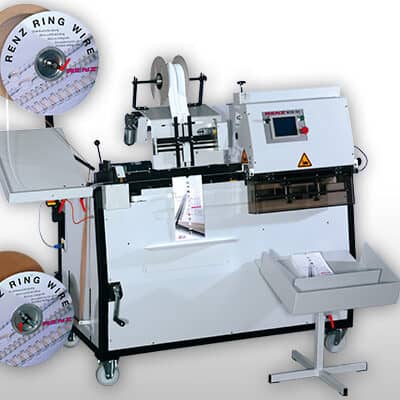

Renz Mobi 500 Semi-Automated Wire Binding Machine
The Renz Mobi 500 is a user-friendly, semi-automatic RENZ RING WIRE® binding machine designed for versatility. Whether you’re binding books, calendars, or opting for skip binding, this machine offers high flexibility for various paper formats. With a touch screen assisted setup process, it ensures short setup times without the need for tools. Its ability to bind up to 260 sheets and a maximum width of 500 mm makes it a reliable choice for all your binding needs. Plus, with wheels for easy movement, it’s as portable as it is efficient.
High Flexibility
Adapts to different paper formats and can bind oversized products.Touch Screen Assisted
Quick and user-friendly setup process with no tools needed.Portable Design
Equipped with wheels for easy mobility and relocation.More Information
Introducing the Renz Mobi 500
The Renz Mobi 500 Semi-Automated Wire Binding Machine stands out as a semi-automatic RENZ RING WIRE® binding machine, offering unparalleled flexibility and efficiency. Designed with the user in mind, it caters to a range of binding needs from books to calendars and even skip binding.
Features at a Glance
- High flexibility for different paper formats.
- Capability to bind oversized products.
- Touch screen assisted setup for ease of use.
- Short setup times with no tools required.
- Binding capacity of up to 260 sheets.
- Portable design with wheels for easy movement.
Use Cases
Whether you’re a publishing house looking to bind books or a corporate office needing to bind reports and presentations, the Renz Mobi 500 is your go-to machine. Its versatility also makes it ideal for crafting calendars, making it a favourite among printing businesses during the festive season.
With its user-friendly design, even beginners can get the hang of it in no time. The touch screen assisted setup ensures that you spend less time fiddling with settings and more time getting the job done. Plus, with its portability, it’s perfect for businesses that require on-the-go binding solutions.
Specifications
| Mechanical cycles per hour | 1,000 |
| Pitch | 3:1, 2:1 |
| Binding thickness | 1 – 26 mm |
| Binding element Ø | 5.5 – 32 mm – 3/16″ – 1 1/4″ |
| Min. binding width | 105 mm* |
| Max. binding width | 500 mm |
| Min. unbound edge | 148 mm* |
| Max. unbound edge | 450 mm |
| Binding operation | Foot pedal |
| Time required for diameter change | 4 – 10 min |
| Format change without diameter | 2 min |
| Calendar hangers | Optional |
| Machine dimensions (LxWxH) | 2,200 x 1,400 x 2,000 mm |
| Machine weight | 500 kg (1) |
| Machine packing dimensions (LxWxH) | 2,300 x 1,500 x 2,100 mm |
| Machine weight with packing | 675 kg |
| Compressed air | No |
| Power requirement | 230V~50Hz / 1kW – 115V~60Hz / 1kW |
FAQ
How many sheets can the Renz Mobi 500 bind?
The machine can bind up to 260 sheets.
Is any special training required to operate the machine?
No, no special training is required to operate the Renz Mobi 500.
Can the machine bind oversized products?
Yes, the Renz Mobi 500 offers the ability to bind oversized products.
How is the setup process assisted?
The setup process is assisted through a user-friendly touch screen.
